完美体育·（中国）手机网页版3150 DC-DC15V~150V降压5V400mA电源芯片

GENERAL DESCRIPTION

完美体育·（中国）手机网页版3150 is a Buck regulator that

provides accurate constant voltage (CV)

regulation without opto-coupler. It has an

integrated 150V MOSFET to simplify the

structure and reduce costs. These features

make it an ideal regulator for off-line low

power applications, such as home

appliances and standby power.

完美体育·（中国）手机网页版3150 is a green -mode-operation

regulator. Both the peak current and

switching frequency decrease as the load

decreases. This feature provides excellent

efficiency at light load, and improves the

overall average efficiency. 完美体育·（中国）手机网页版3150 features

various protections, including thermal

shutdown (OTP), VCC under-voltage

lockout (UVLO), overload protection (OLP),

short-circuit protection (SCP), and open

loop protection.

完美体育·（中国）手机网页版3150 is offered in SOP7 package.

FEATURES

 Primary-Side CV control.

 Wide input range: 15V~150V

 Integrated 150V/5.0Ω MOSFET and

current source

 < 30mW no-load power consumption

 Fixed 5.0V output voltage

 Up to 400mA output Current

 Low VCC Operating Current

 Frequency foldback

 Limited maximum frequency

 Internally biased VCC

 OTP, UVLO, OLP, SCP, Open loop

APPLICATIONS

 Standby power

 E-bike applications

 Industrial controls

 Consumer electronics

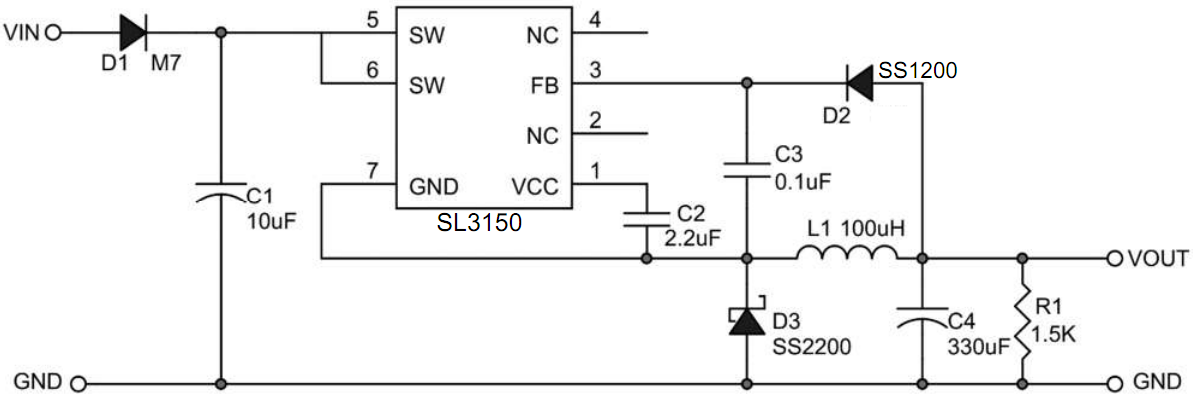

TYPICAL APPLICATION
