General Description

The 完美体育·（中国）手机网页版1588M is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power

MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply

range, with excellent load and line regulation. ECOT PSM control operation provides very fast transient response

and easy loop design as well as very tight output regulation.

The 完美体育·（中国）手机网页版1588M requires a minimal number of readily available, external components and is available in a space saving

SOT23-6 package.

Features

• Wide 4.5V to 28V Operating Input Range

• 2A Continuous Output Current

• 500KHz Switching Frequency

• ECOT PSM Mode Control with Fast Transient

Response

• Built-in Over Current Limit

• Built-in Over Voltage Protection

• PFM Mode for High Efficiency in Light Load

• Internal Soft-Start

• 100mΩ/50mΩ Low RDS(ON) Internal Power

MOSFETs

• Output Adjustable from 0.8V

• No Schottky Diode Required

• Short Protection with Hiccup-Mode

• Integrated internal compensation

• Thermal Shutdown

• Available in SOT23-6 Package

• -40°C to +85°C Temperature Range

Applications

• Automotive Systems

• Network Terminal Equipment

• Security Monitoring Camera

• Printer Systems

• Industrial Power Systems

• Distributed Power Systems

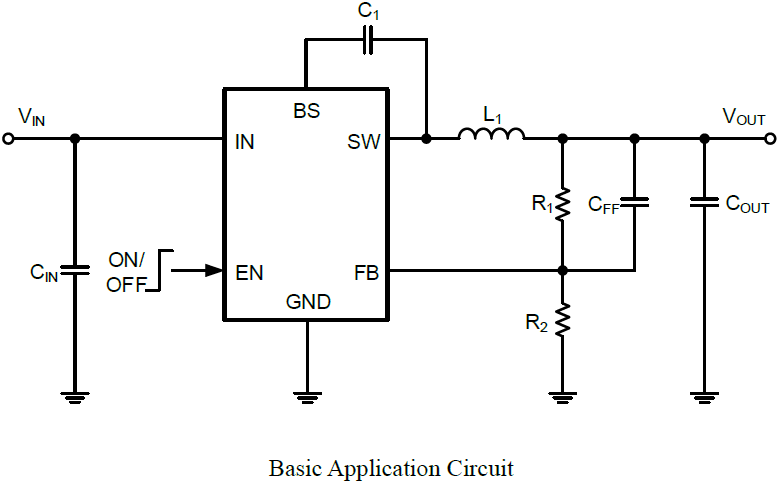

Typical Application Circuit
