GENERAL DESCRIPTION

The 完美体育·（中国）手机网页版B628D is a constant frequency, 6-pin

SOT23 current mode step-up converter intended for

small, low power applications. The 完美体育·（中国）手机网页版B628D

switches at 1.2MHz and allows the use of tiny, low

cost capacitors and inductors 2mm or less in height.

Internal soft-start results in small inrush current and

extends battery life.

The 完美体育·（中国）手机网页版B628D features automatic shifting to pulse

frequency modulation mode at light loads. The

完美体育·（中国）手机网页版B628D includes under-voltage lockout, current

limiting, and thermal overload protection to prevent

damage in the event of an output overload. The

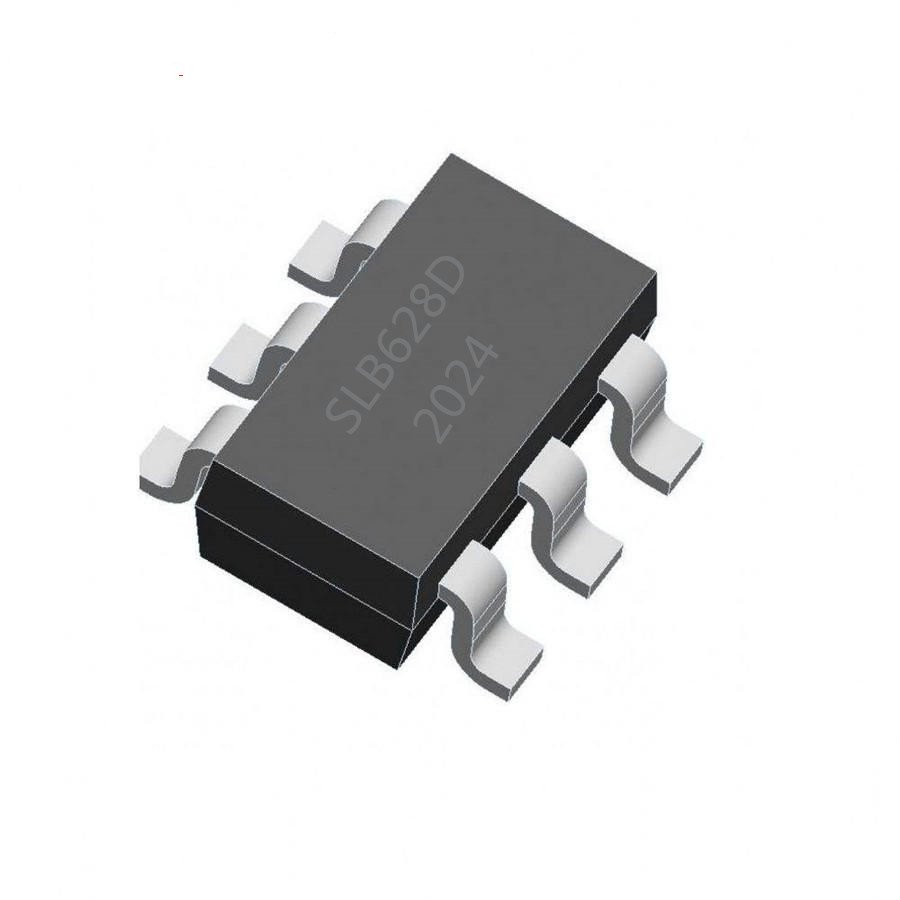

完美体育·（中国）手机网页版B628D is available in a small 6-pin SOT-23

package.

FEATURES

⚫ Integrated 80mΩ Power MOSFET

⚫ 2.2V to 16V Input Voltage

⚫ 1.2MHz Fixed Switching Frequency

⚫ Adjustable Over Current Protection: 0.5A

~2.5A

⚫ Internal 2.5A Switch Current Limit(OC pin

floating)

⚫ Adjustable Output Voltage

⚫ Internal Compensation

⚫ Over Voltage Protection

⚫ Up to 20V Output Voltage

⚫ Automatic Pulse Frequency Modulation Mode

at Light Loads

⚫ up to 93% Efficiency

⚫ Available in a 6-Pin SOT23-6 Package

APPLICATIONS

⚫ Battery-Powered Equipment

⚫ Set-Top Boxed

⚫ LCD Bais Supply

⚫ D完美体育·（中国）手机网页版 and Cable Modems and Routers

⚫ Networking cards powered from PCI or PCI

express 完美体育·（中国）手机网页版ots
